PHQ-High Speed Mix Taping, Cording Flat Embroidery Machine
  • 产品特点
  • 产品规格
  • 应用案例

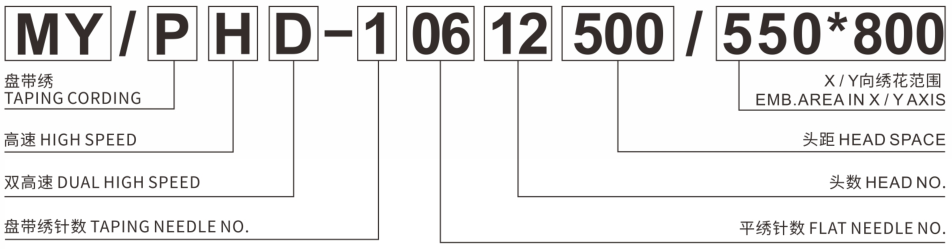

  • MY/PHQ-10612    500/550*800




    Main  Application 〉〉

    PHQ series is the mixed Dual High Speed model of taping, cording and flat standard embroidery . It is made of the latest high speed Q type taping heads (Max. 850SPM) and flat heads (Max. 1200 SPM). The latest Q type taping head can sew various types and sizes of tape, ribbon, and cord, meanwhile gadgets for coiling, standing, frill, blind effects are optional. The mix machine helps to expand your imagination about the versatile embroidery expressions. Moreover, various optional devices add sequin, cording and loose beads on embroidery. It is mainly applicable on wedding dress, fashionable dress, evening dress, performance costume, and luxurious home textile. Your investment and earnings are secured by expertise of more than 15 years from MAYA.



    Embroidery Gallery 〉〉




    Main Features 〉〉

    Common Features:

    ● Latest original control system by the leading provider of full embroidery solution;

    ● All new steady, vibration-proof designed chassis for speedy, smooth and quiet embroidery;

    ● All new designed pantograph of high precision and smoothness assures the finest stitching;

    ● Powerful accurate controlling by customized servo motor system on main shaft and X/Y shaft;

    ● Genuine parts and automatic oiling system safeguards the long lasting 24 hours running;

    ● Intelligent high sensitive thread breakage detection minimizes the chance of a missing stitch;


    Flat Head Features:

    ● Maximum running speed at 1200 SPM, practical running speed at 1100 SPM;

    ● Unique designed take up cam (DS) and main driving system for perfect shiny, finest stitching;

    ● Extra wide linear guide rail with jumbo bearings for precise and durable driving of pantograph;

    ● Soundless designed presser foot driving system improves the user’s experience;

    ● Easy to adjust the height of presser foot according to different thickness of fabric;

    ● Smooth feeding of embroidery thread on the unique tension base, even metallic thread;


    Taping / Cording Head Features:

    ● Maximum running speed at 850 SPM, practical running speed at 800 SPM;

    ● Patented all new high speed Q type taping head, almost maintenance free;

    ● More durable and quiet by the separate M shaft motors and jump motor;

    ● Easy to set the height of presser foot by 10 levels for different thickness of material;

    ● Genuine parts and automatic clutch system safeguards continuous 24 hours running;

    ● Easy switching off the individual taping head for mending of special embroidery;

    Various optional devices are available upon request. Please refer to Optional Device

    (* Starred features are optional or technical requirement. SPM is stitches per minute.)



    Main configurations 〉〉

    ● The latest original 10 inch OP Box, faster and safer control system than ever;

    ● Easy to manage embroidery machines and designs by network connection;

    ● Multiple popular languages are available, say NO to language obstacles;

    ● Massive storage memory up to 100 million stitches, and 800 designs, ever more;

    ● Multi-task operation, edit designs, modify parameters on the running machine;
    ● Automatic shifting between standard embroidery and taping / cording embroidery;

    ● Genuine imported Japan-made rotary hook, bobbin cases, bearings and screws;

    (* 1.6x jumbo rotary hook and bobbin case is available to reduce the down time.)




    ● Genuine imported Italy-made or German-made timing belts for X/Y motion;

    ● High precision 1000 resolution embroidery-purpose-customized encoder;

    ● Made of all patented original components of high precision and durability;

    ● Made by all MAYA expertise of more than 15 years in embroidery machines;

    * Closed loop screw rod (SR) system guarantees the fast, quiet and precise color changing;

    * Closed loop stepping motor trimming system for the clean, quiet and stable thread trimming;

    * Steady upper thread holding system let no thread go off after even frequent trimming;

    * Central drive in Y axis guide rail enhances the stability of high speed running;

    * Double drive on main shaft minimizes the twisting force on high speed running;

    * Double Z drive on pantograph guarantees the perfect alignment of large area working;

    (* Starred features are optional or technical requirement. SPM is stitches per minute.)




    Genuine Quality Parts Applied 〉〉

    Genuine Quality Parts无导航条.jpg



    PHQ Type Regular Models 〉〉

       机型

     Model

       针数

     Needles

           头数

          Heads

       机头间距

    Head Space

       绣花范围

      Emb. Area

       内框长

    Frame Length

      长度/宽度

    Length/Width

    PHQ-10608       1+6         8+8     500  550*800  3250MM4785*2115MM
    PHQ-10610       1+6         10+10     500  550*800  4250MM6885*2115MM
    PHQ-10612       1+6         12+12     500  550*800  62900MM7995*2115MM
    PHQ-10615       1+6         15+15     450  500*800  7000MM8615*2115MM
    PHQ-10424       1+4         24+24     400  450*1500  97100MM114350*3515MM

    * More affordable Normal Speed (PNQ) Series is also available.

    * B type taping head ( one servo motor controls M shaft of all taping heads) is available upon request.

    * B type taping head can not set the height of presser foot by 10 level. Manual setting is required.

    * Jump stitches on B type taping head is controlled by by jump solenoid, instead of jump motor.



    Production Process 〉〉

    6 production-processes无导航条.jpg



    Factory Glimpse〉〉

    Factory Glimpse.jpg



    Professional Certificates 〉〉

    7 professional certificates无导航条2.jpg



    FAQ Hot Questions 〉〉

    Q: Is MAYA a reliable long-term strategic partner?

    A: Just ask our valued customers, view our company profile, assessment of capability, factory glimpse, and the honors we achieved. And why not contact us or pay a visit to us?



    Q: Can I represent and sell MAYA embroidery machines in my region?

    A: We are recruiting global agents to distribute Maya embroidery machines. Welcome to join Maya and grow to be a strong distributor.



    Q: What supports do I get for representing MAYA embroidery machines?

    A: We provide training for latest technology and embroidery techniques. We assure fast timely delivery of quality guaranteed machines. We offer the most competitive price for agency, and flexible payment term.



    Q: What services will I get with the deal with MAYA?

    A: We are simply at your service: available consultancy before sales, easy communication during sales, easy payment term, smooth and safe delivery of guaranteed quality, and assured timely services after sales.



    Q: How many heads do i need and what embroidery area on each head?

    A: Think: how big is your factory and how much is your expected production? The embroidery area on each head depends on the maximum area of your embroidery design to run.



    Our Service 〉〉

    One Stop Buying. We know and offer what you need. We create machines according to your special demand.


    Fast Delivery. We deliver the customized machines within 30-50 days after down payment, even from stock.


    We provide conditional ONE year warranty and 24 hours online long-distance technical support for lifetime.


    Overseas installation,tuning and training service is also available if necessary, just at minimum cost.
